The SEC series air compressors are renowned for their robust design margin in critical components, tailored to excel in diverse industrial settings. Special attention is devoted to ensuring vibration resistance, achieved by suspending both the sturdy independent frame and the air compressor assembly within a soundproof steel housing. This design guarantees long-term rigidity, ensuring machine reliability.
Benefits
Industrial
Compact - Small
Proven And Reliable
Modern Control Unit With Atmos Care Protection
Remote Management of Air Compressors
Wide Range Of Accessories
Possibility To Control Multiple Air Compressors
Parameters
| electric motor rated power [kW] | overpressure [bar] | rated air delivery [m³/min] | |
|---|---|---|---|

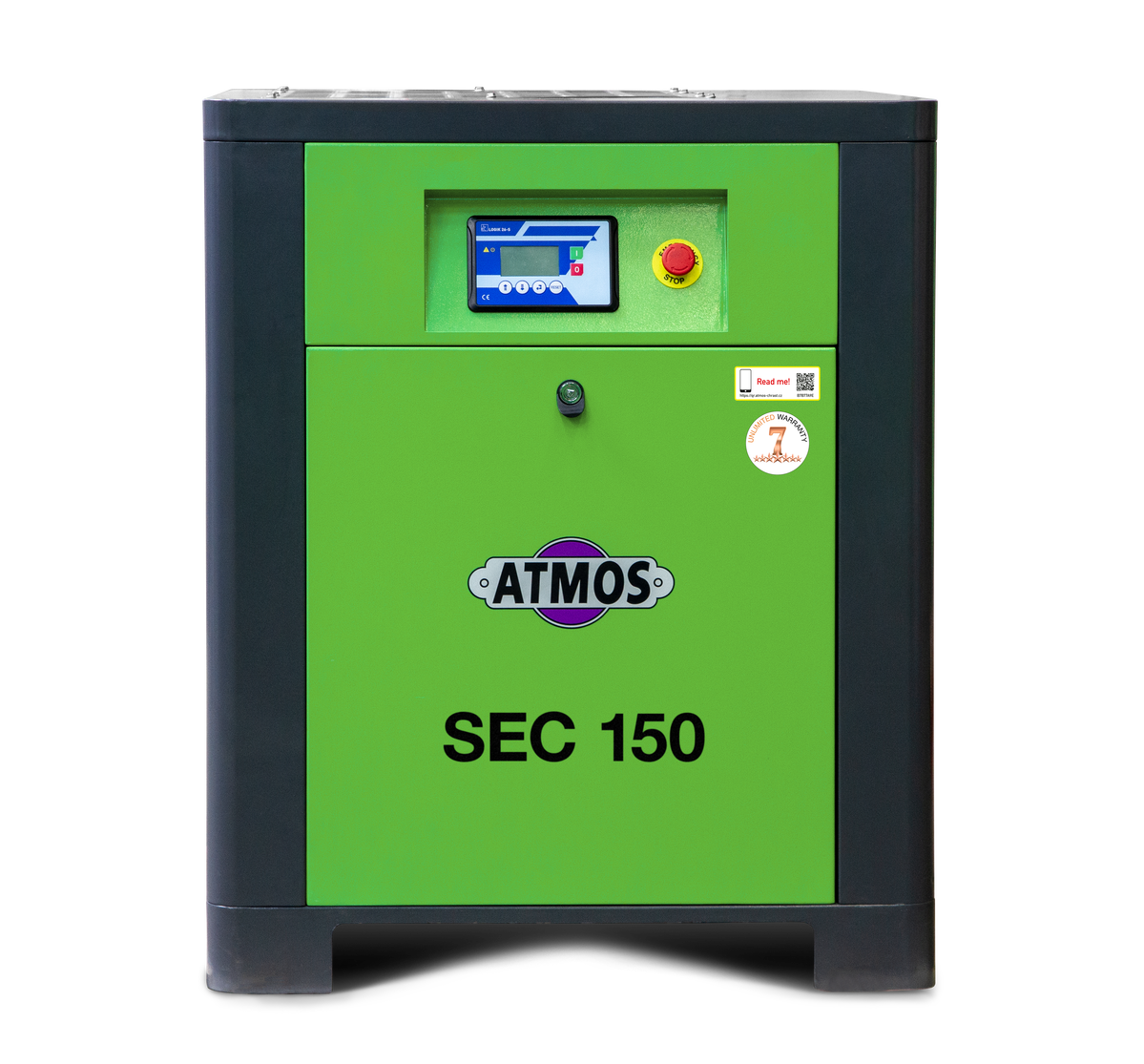

SEC150 | 15 | 8 / 10 | 2,2 / 2,0 |
SEC220 | 22 | 8 / 10 | 3,8 / 3,1 |
SEC221 | 22 | 8 / 10 / 13 | 3,9 / 3,2 / 2,4 |

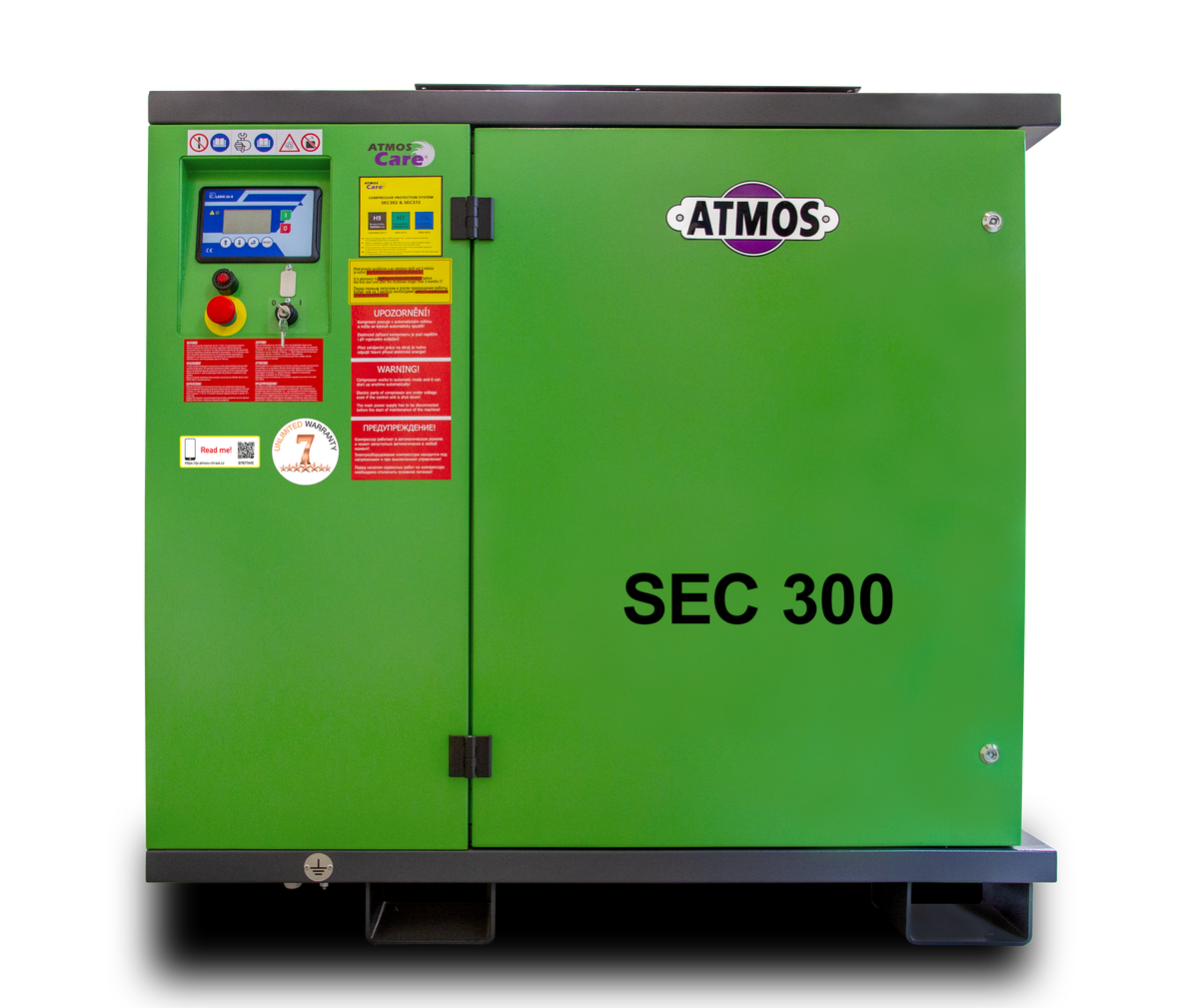

SEC300 | 30, | 8 / 10 / 13 | 4,5 / 4,0 / 3,3 |
SEC302 | 30 | 8 / 10 / 13 | 5,2 / 4,4 / 4,1 |
SEC372 | 37 | 8 / 10 / 13 | 6,3 / 5,4 / 4,5 |
SEC221 Vario | 22 | 8 / 10 / 13 | 3,9 / 3,2 / 2,4 |
SEC300 Vario | 30 | 8 / 10 / 13 | 4,5 / 4,0 / 3,3 |

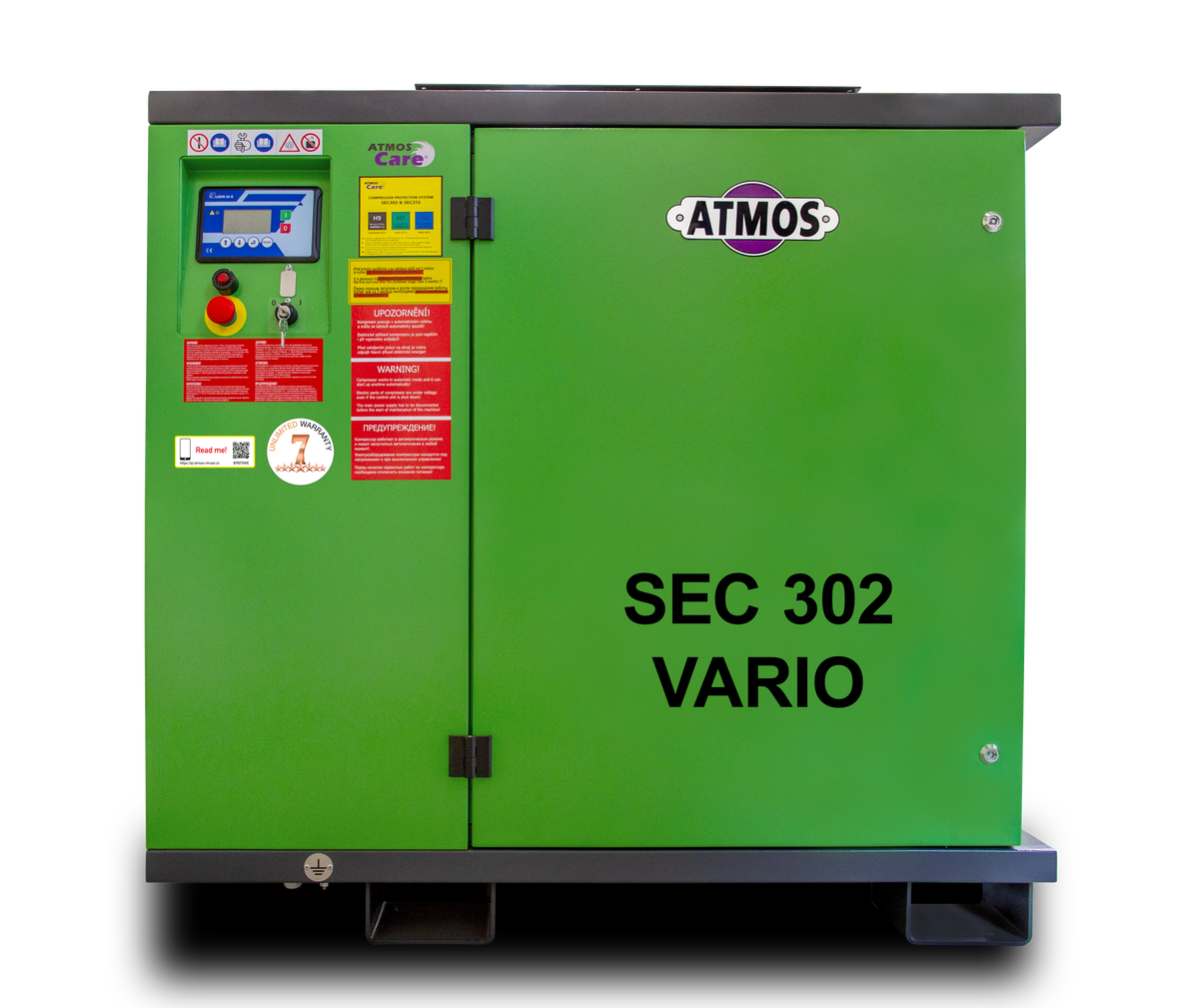

SEC302 Vario | 30 | 8 / 10 / 13 | 5,2 / 4,4 / 4,1 |
SEC372 Vario | 37 | 8 / 10 / 13 | 6,3 / 5,4 / 4,5 |
